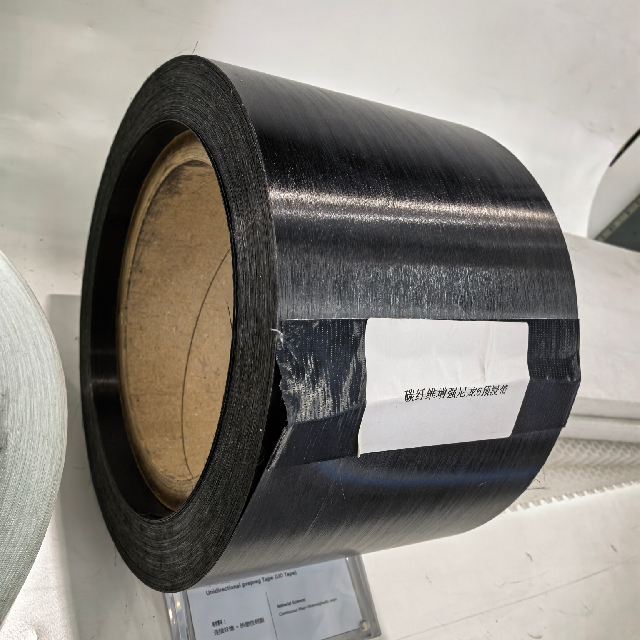

Sourcing high-performance composite materials requires a reliable manufacturer and supplier capable of delivering consistent, unyielding quality. The CF/PA6 UD-TAPE is a premium continuous carbon fiber-reinforced nylon unidirectional prepreg tape engineered specifically for demanding industrial and structural applications.
Engineered through an advanced, high-precision melt impregnation process.
Combines parallel high-strength carbon fibers with molten thermoplastic PA6.
Delivers an exceptional balance of specific strength and impact resistance.
Ideal for bulk procurement in lightweighting and structural reinforcement projects.
Ensures seamless integration into automated manufacturing environments.
The CF/PA6 UD-TAPE represents a breakthrough in advanced thermoplastic composites, meticulously engineered to meet the rigorous demands of modern structural applications. At its core, this continuous carbon fiber-reinforced nylon unidirectional prepreg tape is manufactured by impregnating perfectly parallel, high-strength continuous carbon fibers with premium molten thermoplastic polyamide 6. The result is a sleek, deep black sheet material with a smooth, uniform surface texture that speaks to its void-free internal structure. When handled, the tape exhibits a distinct rigidity coupled with a subtle flexibility, a tactile characteristic unique to high-end thermoplastic matrices.
This material is not merely a passive structural component; it is a transformative solution for complex engineering challenges. By utilizing a sophisticated melt impregnation process, every single carbon filament is thoroughly wetted and encapsulated by the PA6 matrix. This structural synergy ensures that external mechanical loads are transferred flawlessly across the composite network. The sheer absence of dry spots or resin-rich areas guarantees predictable, repeatable performance across large-scale manufacturing runs. Whether your projects involve reinforcing high-pressure composite pipes or developing next-generation lightweight automotive chassis, this prepreg tape provides the uncompromising strength, exceptional corrosion resistance, and superior impact absorption required to elevate your end products and outpace industry standards.
Precision engineering requires exact material properties to ensure seamless integration into your manufacturing workflows. The parameters outlined below reflect the stringent manufacturing tolerances and quality control measures applied during the production of our unidirectional prepreg tape. These specifications guarantee that the material will perform consistently under high-stress conditions, providing the exact surface density, fiber volume fraction, and dimensional accuracy needed for automated tape laying or thermoforming processes. Please review the technical data to confirm compatibility with your specific structural requirements.
| Specifications and dimensions | Details |
|---|---|
| Fiber type | Carbon fiber |
| Resin type | Polyamide 6 |
| Tape thickness | 0.33mm |
| Tape surface density | 470gsm |
| Tape width | 10mm ~ 600mm |
| Color | Black |
| Fiber content | 60% |
Upgrading your material selection directly impacts the durability, efficiency, and market competitiveness of your finished goods. This carbon fiber prepreg tape is engineered to solve complex engineering bottlenecks, offering a unique combination of physical and chemical properties that traditional metals or thermoset plastics simply cannot match.
Exceptional Specific Strength and Stiffness: The highly aligned continuous carbon fibers deliver maximum load-bearing capabilities along the fiber direction, allowing you to design thinner, lighter structures without sacrificing structural integrity.
Superior Impact Resistance: The inherent toughness of the polyamide 6 matrix absorbs and dissipates impact energy highly effectively, preventing catastrophic brittle failure in high-stress environments.
Outstanding Corrosion Resistance: Naturally impervious to moisture, harsh chemicals, and environmental degradation, ensuring a prolonged lifespan and significantly reduced maintenance costs for your end-users.
Streamlined Processing: As a fully thermoplastic system, it eliminates the need for curing time, enabling rapid thermoforming, stamping, and automated processing to dramatically increase your production throughput.
Void-Free Consolidation: The meticulous melt impregnation technique guarantees an ultra-low void content, translating to consistent mechanical properties and a flawless surface finish on every roll.
To truly understand the value this unidirectional tape brings to your production lines, it is essential to explore its multifaceted engineering dimensions. From material science to end-use versatility, every aspect of this product is optimized to drive innovation and efficiency in your manufacturing operations.
Core Materials & Lightweighting: Utilizing a scientifically optimized 60% fiber volume fraction, this tape achieves an incredibly low density of approximately 1.38g/cm³. It weighs over 60% less than traditional steel while providing superior mechanical support, making it the ultimate solution for metal-to-plastic replacement initiatives.
Superior Mechanical Properties: Beyond its massive tensile strength, which reaches up to 1330 MPa, the PA6 matrix imparts extraordinary toughness and heat resistance up to 180°C. It stands resilient against extreme mechanical loads, resisting abrasion and fracture far better than conventional epoxy-based alternatives.
Advanced Impregnation & Quality Control: Our melt impregnation technology ensures deep, uniform resin penetration. With zero dry fibers and negligible porosity, the material guarantees that every ounce of external stress is efficiently distributed through the polymer matrix directly to the carbon reinforcement.
Excellent Molding Adaptability: Designed for ultimate manufacturing flexibility, this tape seamlessly integrates with hot pressing, filament winding, and automated tape laying (ATL/AFP). It also forms incredibly strong interlaminar bonds during overmolding and laser welding procedures.
Sustainability & Eco-Friendly: Manufactured with zero VOC emissions, this 100% recyclable thermoplastic composite aligns perfectly with strict global standards for green manufacturing, helping you build a sustainable, low-carbon supply chain.
Versatile Industry Applications: The exceptional property profile makes it a highly sought-after material for automotive lightweighting components like seat frames and battery enclosures, reinforced composite oil and gas pipes, aerospace interiors, safety gear, and high-end architectural constructions.
Selecting the right manufacturing partner is just as critical as selecting the right material. As a premier manufacturer and supplier of continuous fiber-reinforced thermoplastic composites, we provide more than just raw materials; we deliver comprehensive engineering solutions tailored to your operational scale.
Robust R&D Capabilities: Our dedicated research teams continuously refine our melt impregnation technologies, ensuring you receive state-of-the-art materials that keep your product lines ahead of industry trends.
Stringent Quality Assurance: Every batch of prepreg tape undergoes rigorous mechanical and visual inspections. We guarantee dimensional stability, consistent resin distribution, and exact fiber alignment to eliminate costly downtime in your facilities.
Scalable Production Capacity: Whether you require customized tape widths ranging from 10mm to 600mm or massive volume fulfillment, our advanced production lines are equipped to meet your strictest delivery schedules without compromising quality.
Expert Technical Support: Our engineering specialists work closely with your design and production teams, offering guidance on thermoforming parameters, tooling design, and material integration to ensure a flawless manufacturing transition.
Navigating the transition to advanced thermoplastic composites can raise specific technical inquiries. Below, we address some of the most critical questions engineering and procurement teams have regarding our unidirectional carbon fiber tape.
What makes PA6 a superior matrix choice compared to traditional thermoset resins?
Polyamide 6 offers exceptional toughness, impact resistance, and ductility that brittle thermosets often lack. Additionally, as a thermoplastic, it allows for rapid processing, reshaping, and welding without the lengthy curing cycles required by epoxies, drastically reducing your overall cycle times and operational costs.
How does the melt impregnation process improve the final composite part?
Melt impregnation ensures that the highly viscous molten PA6 fully wets each individual carbon filament under precise thermal and pressure controls. This eliminates dry spots and minimizes internal voids, leading to superior interlaminar shear strength and ensuring that mechanical loads are perfectly transferred from the resin to the structural fibers.
Can this UD tape be used in automated manufacturing processes?
Yes, the precise dimensional tolerances, consistent 0.33mm thickness, and clean edges make this tape exceptionally well-suited for Automated Tape Laying (ATL) and Automated Fiber Placement (AFP) systems. This enables high-speed, precision manufacturing of complex geometries with minimal material waste.
Is it possible to bond this material with other structural components?
Absolutely. Because it is a thermoplastic matrix, the tape can be seamlessly integrated with other compatible polymer components through thermal welding, ultrasonic welding, or overmolding processes. This creates incredibly strong, cohesive bonds without the need for heavy mechanical fasteners or chemical adhesives.
What storage conditions are required for this prepreg tape?
Unlike thermoset prepregs that require energy-intensive cold storage to prevent premature curing, our thermoplastic CF/PA6 UD-TAPE is highly stable at room temperature. It boasts a virtually unlimited shelf life when stored in a dry environment away from direct UV exposure, significantly simplifying your inventory management and logistics.
