Carbon Fiber CFRT Laminate Strength Explained Simply

Views: 0     Author: Site Editor     Publish Time: 2026-08-04      Origin: Site

Inquire

wechat sharing button
line sharing button
twitter sharing button
facebook sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Modern structural engineering demands materials that push beyond the physical limits of traditional metals and legacy thermoset plastics. The industrial shift toward continuous fiber reinforced thermoplastics (CFRT) directly answers the engineering challenge of achieving maximum structural integrity and stiffness while strictly controlling weight and manufacturing scalability. For decades, aluminum and steel dominated load-bearing applications, but their inherent density restricts performance in weight-critical environments. Conversely, traditional epoxy-based composites offer excellent weight reduction but suffer from brittle failure modes and painfully slow curing cycles. Selecting the right composite material requires moving beyond generic tensile strength claims. Engineers must understand how precursor materials, precise fiber orientation, matrix selection, and laminate scheduling dictate real-world structural performance.

  • Strength-to-Weight Dominance: CFRT laminates offer tensile strengths that can exceed 500,000 psi at a fraction of the density of aluminum (roughly 1.6–1.8 g/cm³), fundamentally altering structural design parameters.

  • Thermoplastic Matrix Advantage: Utilizing a thermoplastic matrix, such as a Carbon Fiber PP Composite, significantly improves impact resistance, fracture toughness, and post-processing flexibility compared to brittle thermosets.

  • Directional Dependency: Ultimate structural performance is not inherent to the raw fiber; it is engineered through precise fiber orientation and balanced laminate schedules tailored to specific load paths.

  • Manufacturing Scalability: While upfront material costs may be higher, CFRT laminates deliver operational efficiency through rapid thermoforming capabilities, weldability, and recyclability.

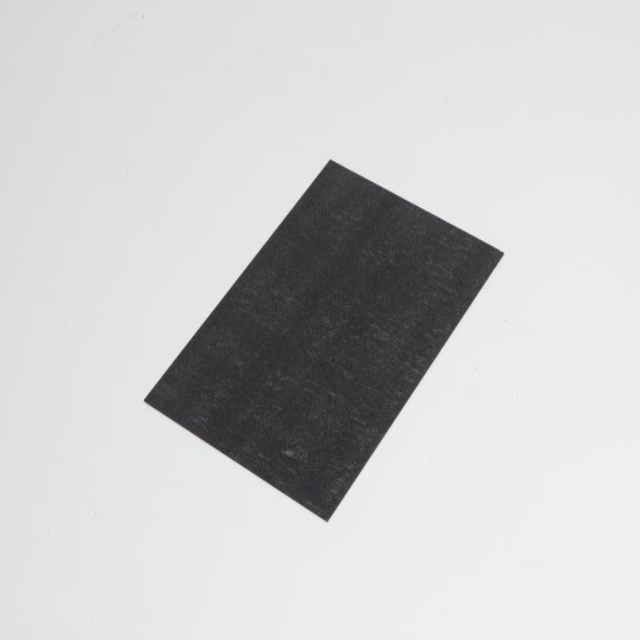

Carbon Fiber CFRT Laminate Structural Application

Engineering the Laminate: Fiber Orientation and Architecture

Raw carbon fibers are inherently anisotropic. They only provide strength and stiffness along their longitudinal axis. To create a functional structural component, engineers must manipulate the material architecture to meet specific load-bearing criteria. The strength of the final part is entirely dependent on how the plies are oriented and stacked during the lamination process.

Unidirectional (UD) vs. Woven Tapes

The fundamental building blocks of CFRT laminates are unidirectional (UD) tapes and woven fabrics. UD tapes consist of continuous fibers running parallel in a single direction, encapsulated in the thermoplastic resin. They offer the absolute maximum strength and stiffness along that specific axis but provide minimal structural support transversely. Woven fabrics, where fibers are interlaced at 0 and 90 degrees, provide multidirectional stability and are easier to drape over complex tooling. The crimping effect where the fibers cross over each other creates microscopic stress concentrations. This results in lower absolute strength per axis compared to perfectly straight UD tapes. Engineers often combine both, using UD tapes for primary load paths and woven layers for surface durability and impact resistance.


Designing a Balanced Laminate Schedule

A laminate schedule dictates the exact sequence and angle of each ply within the composite stack. Designing a balanced and symmetric laminate schedule prevents warpage during both thermal cycling in manufacturing and operational loading in the field. Symmetry means that the ply angles are mirrored across the center plane of the laminate. Balance ensures that for every ply angled at +θ, there is a corresponding ply angled at -θ.

  • 0° Plies: Placed to absorb primary axial tension and compression loads. These carry the bulk of the structural weight.

  • 90° Plies: Integrated to handle transverse loading and prevent longitudinal splitting under side impacts.

  • ±45° Plies: Essential for managing shear stresses and increasing torsional rigidity across the entire component.

  • ±60° Plies: Occasionally used in quasi-isotropic layups to mimic the uniform strength distribution of metals.

By varying these ply angles, engineers create a tailored modulus. They effectively design a custom material that perfectly matches the complex, multi-axial load requirements of the specific application. An unbalanced schedule will result in the "potato chip effect," where the part twists and warps as it cools from the thermoforming temperature.

Material Compliance and Testing Standards

Supplier claims regarding strength and stiffness must be validated against recognized international testing standards. Procurement and engineering teams should demand comprehensive testing data before qualifying a material for structural use. Key metrics to verify include the fiber volume fraction (Vf), which should typically range between 45% and 60% for structural applications. The void content must remain below 2% to ensure maximum interlaminar shear strength. Non-Destructive Testing (NDT), such as ultrasonic C-scans, is frequently employed to verify these internal metrics without destroying the part.

  • ASTM D3039: Standard test method for determining the tensile properties of polymer matrix composite materials. This verifies the ultimate tensile strength and modulus.

  • ASTM D790: Standard test method for evaluating flexural properties, necessary for understanding bending stiffness under transverse loads.

  • ASTM D2344: Standard test method for short-beam strength to evaluate apparent interlaminar shear strength and delamination resistance.

  • ISO 14127: Standard for determining the resin, fiber, and void contents of carbon fiber reinforced plastics.

  • ASTM D7136: Standard test method for measuring the damage resistance of a fiber-reinforced polymer matrix composite to a drop-weight impact event.


Lifecycle Longevity and Operational Yield Analysis

Evaluating the true value of CFRT requires looking beyond the initial material acquisition and analyzing the complete operational lifecycle. The rapid thermoforming cycle times drastically increase manufacturing throughput, allowing facilities to produce more units per hour compared to traditional composite methods. Thermoplastic matrices offer a unique yield advantage: recyclability. Unlike thermosets, off-cuts, scrap material, and end-of-life components can be reheated, reshaped, or chopped into short-fiber compounds for injection molding. This closed-loop material utilization significantly reduces manufacturing waste and extends the functional lifecycle of the raw polymers. It provides immense long-term operational efficiency and reduces the volume of material sent to landfills.
