| Quantity: | |
|---|---|
Tape thickness: 1.1mm~1.25mm
Tape surface density: 1125gsm~1200gsm
Sheet width: 100mm

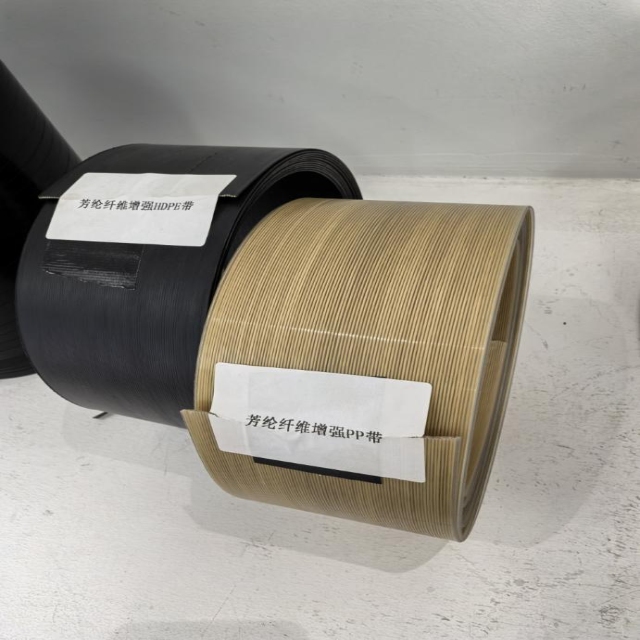

Colors: Black , Natural
Fiber content: 35 %~ 39.5 %
As a premier manufacturer and global supplier of advanced composite materials, we present the GF/Aramid UD-TAPE, engineered for demanding industrial environments. This continuous fiber-reinforced thermoplastic prepreg tape combines the extreme tenacity of aramid and glass fibers with the resilience of PE and PP resins. Designed for bulk procurement and large-scale manufacturing integration, it delivers uncompromising structural integrity.
Ultra-lightweight profile with exceptional tensile strength
Superior barrier against moisture, gases, and chemicals
Engineered specifically for heavy-duty pipeline reinforcement
The GF/Aramid UD-TAPE represents a paradigm shift in structural reinforcement materials, meticulously crafted by impregnating continuous aramid and glass fibers into a robust thermoplastic matrix of polyethylene (PE) and polypropylene (PP). When handled, the tape exhibits a distinctively smooth yet structurally dense tactile feel, reflecting its highly consolidated, void-free internal architecture. Its natural or deep black visual finish hints at the sophisticated melt-impregnation process that ensures every single filament is thoroughly encased in resin. This material is not merely a component; it is a transformative solution for engineering challenges that demand the ultimate balance of weight reduction and mechanical fortitude.
By replacing traditional heavy metals, it drastically reduces the overall weight of the final assembly without sacrificing an ounce of structural integrity. When deployed in extreme environments, such as deep-sea oil and gas transportation, the tape acts as an impenetrable shield. It aggressively resists corrosive acids, volatile chemicals, and abrasive friction, ensuring that your infrastructure remains intact and operational for decades. The inherent flexibility of the thermoplastic matrix allows it to conform seamlessly to complex geometries during the winding process, significantly accelerating production timelines and reducing labor overhead for large-scale industrial projects.
Precision engineering requires precise metrics. The following specifications outline the exact dimensional and compositional tolerances of our GF/Aramid UD-TAPE. Every roll is manufactured under stringent quality control protocols to ensure absolute consistency across large-volume orders. From the specific tape thickness to the exact fiber volume fraction, these parameters guarantee predictable, repeatable performance during your thermal consolidation or tape winding processes. The carefully calibrated surface density and fiber content provide the optimal resin-to-fiber ratio, preventing dry spots and ensuring maximum load transfer within the composite structure.
| Parameter | Value |
|---|---|
| Product Name | GF/Aramid UD-TAPE |
| Reinforcement Fiber | Continuous Aramid Fiber / Glass Fiber |
| Resin Matrix | Thermoplastic PE and PP |
| Tape Thickness | 1.1mm ~ 1.25mm |
| Tape Surface Density (Area Weight) | 1125gsm ~ 1200gsm |
| Sheet Width | 100mm |
| Fiber Content | 35% ~ 39.5% |
| Colors | Black, Natural |
Engineered to outperform conventional reinforcement materials, this unidirectional tape delivers a suite of mechanical and chemical advantages. It directly addresses the critical pain points of infrastructure degradation, excessive weight, and environmental vulnerability.
Exceptional Weight-to-Strength Ratio: Dramatically reduces the mass of structural components while maintaining load-bearing capabilities that rival traditional steel alloys, directly lowering transportation and installation costs.
Impermeable Barrier Properties: Forms a dense, impenetrable shield that blocks the permeation of water vapor, volatile gases, industrial oils, and odors, preserving the internal integrity of fluid transport systems.
Extreme Chemical Inertness: Exhibits profound resistance to harsh acidic and alkaline environments, eliminating the need for frequent maintenance or replacement in chemically aggressive settings.
Thermal and Dimensional Stability: Maintains its structural modulus and physical dimensions even under elevated temperatures, preventing warping or degradation during continuous operational stress.
Enhanced Flexibility: The thermoplastic nature allows for superior pliability during application, enabling seamless wrapping and molding around complex cylindrical structures without micro-cracking.
The foundation of this advanced composite lies in its meticulously formulated material matrix. By fusing continuous aramid and glass fibers with premium thermoplastic resins, we have created a material that redefines the concept of metal replacement.
Continuous Fiber Architecture: Utilizes unbroken strands of aramid and glass, ensuring that mechanical stress is distributed evenly along the entire length of the tape, eliminating weak points.
Thermoplastic Synergy: The integration of PE and PP resins provides a resilient, impact-resistant matrix that absorbs shock and prevents catastrophic failure under sudden impacts.
Metal Replacement Capability: Perfectly balances the ultra-high tensile strength of continuous fibers with the lightweight nature of plastics, enabling a true transition from heavy steel components to advanced composites.
Optimized Load Transfer: The specific chemical bonding between the fiber sizing and the thermoplastic matrix ensures maximum stress transfer, maximizing the structural efficiency of the final product.
Performance in the field is dictated by a material's ability to withstand multifaceted environmental assaults. This unidirectional tape is engineered to excel where conventional materials degrade, offering unprecedented longevity and reliability.
Ultra-High Tensile Strength: Delivers an exceptional modulus that resists elongation and deformation under extreme mechanical tension.
Aggressive Corrosion Resistance: Completely immune to rust and highly resistant to a broad spectrum of industrial chemicals, safeguarding critical infrastructure from environmental decay.
Zero-Permeability Matrix: The tightly consolidated resin and fiber structure creates a flawless barrier, ensuring zero leakage of pressurized gases or hazardous fluids.
Fatigue Resistance: Withstands thousands of cycles of pressure fluctuation and mechanical vibration without experiencing material fatigue or delamination.
Odor and Oil Shielding: Effectively blocks the transmission of penetrating industrial odors and resists degradation when exposed to crude oil and synthetic lubricants.
Recognizing that industrial engineering projects operate on microscopic tolerances, we offer profound customization capabilities to align with your exact design parameters. Our manufacturing lines are calibrated to deliver absolute precision.
Micro-Precision Thickness Control: Manufactured within strict tolerances of 1.1mm to 1.25mm, ensuring uniform layering and predictable consolidation during automated tape laying processes.
Calibrated Area Weight: Surface density is strictly maintained between 1125gsm and 1200gsm to guarantee consistent structural mass in the final composite part.
Exact Fiber Volume Fractions: Fiber content is meticulously controlled between 35% and 39.5%, striking the perfect balance between resin flow and mechanical reinforcement.
Aesthetic and Functional Coloring: Available in natural and deep black hues, allowing for visual inspection of tape placement and integration into specific design aesthetics.
Scalable Width Options: While the standard sheet width is 100mm for optimal winding efficiency, our production capabilities can adapt to specific dimensional requirements for large-scale integration.
The flawless visual and structural characteristics of our tape are the direct result of a proprietary melt-impregnation process. We maintain draconian quality control measures to ensure that every centimeter of tape performs flawlessly.
Melt Impregnation Technology: Employs high-temperature, high-pressure processing to force molten thermoplastic resin deep into the fiber bundles, eliminating dry spots and air voids.
Unidirectional Alignment: Fibers are perfectly aligned in a single direction (UD), maximizing tensile strength along the primary load path of the engineered component.
Zero-Defect Surface Finish: The resulting tape features a remarkably smooth, glossy surface free of exposed filaments, ensuring excellent interlaminar bonding during final part consolidation.
Automated Optical Inspection: Every roll undergoes continuous monitoring to detect and eliminate microscopic inconsistencies, guaranteeing absolute stability for high-volume production runs.
Batch-to-Batch Consistency: Strict parameter locks on our manufacturing equipment ensure that an order placed today will perfectly match the mechanical properties of an order placed years from now.
While originally engineered to meet the extreme demands of the energy sector, the unique property profile of this composite tape has driven its adoption across a multitude of high-performance industries.
Oil and Gas Pipelines: Serves as the ultimate wrapping layer for flexible pipes, providing the burst strength required for deep-sea fluid transportation while resisting harsh subsea environments.
Automotive Lightweighting: Integrated into structural vehicle components to slash weight, improve fuel efficiency, and enhance passenger safety through superior energy absorption.
Aerospace Engineering: Utilized in secondary structural elements where every gram of weight savings translates to significant operational cost reductions.
Logistics and Transportation: Reinforces the structural panels of dry vans, reefer containers, and touring cars, offering extreme impact resistance against daily operational abuse.
Architectural Structures: Deployed as a reinforcing element in modern construction, providing high-modulus support without the heavy footprint of traditional steel beams.
In an era where environmental responsibility is a core metric of industrial success, this thermoplastic composite offers a forward-thinking solution. It aligns perfectly with global mandates for carbon reduction and sustainable manufacturing.
Complete Recyclability: Unlike thermoset composites, the PE and PP resin matrix can be reheated, reshaped, and repurposed at the end of the product's life cycle, eliminating landfill waste.
Energy-Efficient Processing: The thermoplastic consolidation process requires significantly less energy and time compared to prolonged thermoset curing cycles, reducing the overall carbon footprint of your manufacturing operations.
Extended Lifespan: The extreme durability and corrosion resistance of the tape drastically reduce the frequency of part replacement, conserving raw materials over the long term.
Eco-Friendly Formulation: Free from volatile organic compounds (VOCs) and toxic curing agents, ensuring a safer working environment and compliance with stringent international environmental regulations.
Supporting Green Procurement: Empowers commercial enterprises and large-scale industrial operators to meet their internal sustainability targets without compromising on mechanical performance.
Partnering with a premier manufacturer means securing a reliable supply chain backed by relentless technological innovation. We do not just supply materials; we provide engineered solutions that elevate your final product.
Unmatched Manufacturing Capacity: Our state-of-the-art facilities are designed to handle massive volume requirements, ensuring uninterrupted supply lines for your most critical projects.
Deep R&D Expertise: Supported by a dedicated team of composite engineers, we continuously refine our resin formulations and impregnation techniques to stay ahead of industry demands.
Stringent Quality Assurance: From raw fiber inspection to final tape spooling, our multi-tiered quality control protocols guarantee that only flawless materials leave our facility.
Global Logistics Mastery: We possess the infrastructure and expertise to execute rapid, secure, and compliant global shipments, ensuring your production lines never experience downtime.
Collaborative Engineering Support: We work directly with your design teams to optimize tape winding patterns, consolidation temperatures, and structural blueprints for maximum efficiency.
Navigating the integration of advanced thermoplastic composites requires precise technical knowledge. Below, we have compiled detailed answers to the most complex inquiries from engineering and procurement professionals.
How does the melt-impregnation process enhance the tape's performance compared to standard resin coating?
Melt-impregnation utilizes high pressure to force the thermoplastic resin into the microscopic spaces between individual aramid and glass filaments. This prevents dry spots and ensures uniform stress distribution, resulting in significantly higher tensile strength and a completely void-free structure.
What are the recommended thermal consolidation parameters for the PE/PP matrix?
While precise temperatures depend on your specific automated tape laying (ATL) or winding equipment, the PE and PP resins generally require localized heating to their respective melting points (typically between 160°C and 220°C) followed by immediate pressurized consolidation to achieve optimal interlaminar bonding.
Can this unidirectional tape be effectively bonded to dissimilar materials?
Yes. Because the matrix is thermoplastic, it can be thermally welded to other compatible polymer structures or bonded to metals using specialized adhesion promoters. Its smooth, highly consolidated surface also provides an excellent substrate for industrial-grade structural adhesives.
How does the tape perform under continuous exposure to high-pressure sour gas (H2S) in pipeline applications?
The highly crystalline structure of the PE and PP matrix, combined with the chemical inertness of the continuous fibers, creates an exceptional barrier. It severely restricts the permeation of sour gas and resists the embrittlement typically caused by harsh petrochemical environments.
Is it possible to customize the fiber volume fraction for specific impact-resistance requirements?
Absolutely. While our standard fiber content ranges from 35% to 39.5% for optimal general performance, our manufacturing lines can precisely adjust the resin-to-fiber ratio. Increasing the resin content can enhance impact absorption, while increasing the fiber fraction will maximize tensile stiffness.
