As a premier manufacturer and dedicated supplier of advanced composite solutions, we engineer high-performance continuous glass fiber reinforced high-density polyethylene unidirectional prepreg tapes. Designed for the most demanding industrial environments, this material delivers exceptional structural integrity and unparalleled processing efficiency.
Engineered utilizing a highly controlled, robust melt impregnation technique
Seamlessly combines continuous glass fibers with a high-density polyethylene matrix
Delivers extraordinary specific strength, stiffness, and impact resistance
Optimized to streamline large-scale industrial manufacturing and automated assembly lines
The GF/HDPE UD-TAPE is a meticulously engineered continuous fiber-reinforced thermoplastic sheet material, created through a highly advanced melt impregnation process. By seamlessly integrating parallel, high-strength continuous glass fibers with a premium high-density polyethylene resin matrix, this tape achieves an extraordinary balance of structural rigidity and flexible adaptability. The tactile finish is exceptionally smooth and consistent, ensuring zero dry spots or exposed fibers, which directly speaks to the precision of the manufacturing technique.
When handled, the material feels remarkably dense yet distinctly lightweight, reflecting its superior specific strength. It is specifically formulated to withstand severe mechanical stress while maintaining absolute dimensional stability, making it an indispensable asset for heavy-duty industrial applications. The uniform dispersion of fibers within the thermoplastic matrix ensures predictable and consistent load transfer, effectively eliminating weak points in the final composite structure. This translates into a highly reliable, impact-resistant, and corrosion-proof foundation for critical infrastructure, allowing project engineers and procurement specialists to confidently specify a material that significantly elevates the lifespan, safety, and overall performance of their end products.
Understanding the precise technical parameters of your materials is crucial for seamless integration into existing production lines. The following specifications detail the exact physical and compositional makeup of our unidirectional prepreg tape, ensuring you have the accurate data required for rigorous engineering calculations and stringent quality assurance protocols. Every roll is manufactured to meet these exact dimensional and material standards to guarantee absolute consistency across all your production batches.
| Specification Parameter | Technical Details |
|---|---|
| Resin Type | High-density polyethylene (HDPE) |
| Fiber Type | Continuous Glass Fiber |
| Fiber Content | 50% ~ 65% |
| Tape Thickness | 0.25mm ~ 0.50mm (Standard thickness 0.3mm) |
| Tape Width | 9mm ~ 630mm |
| Areal Density | 390 gsm ~ 540 gsm |
| Color | Standard colors are natural and black (Other colors can be customized) |
| Processing Technique | Melt impregnation process |
Equipping your production facility with the right composite materials directly impacts your bottom line and end-product reliability. This unidirectional tape is engineered to resolve common manufacturing bottlenecks, offering a streamlined path to superior structural components. By leveraging the unique synergy between continuous glass fibers and HDPE, you can significantly enhance the operational lifespan of your products while reducing overall weight.
Exceptional Specific Strength: Dramatically improves the load-bearing capabilities of your components without adding unnecessary bulk, optimizing overall material usage.
Superior Impact Resistance: Absorbs and dissipates kinetic energy effectively, reducing the risk of catastrophic failure in high-stress environments and minimizing warranty claims.
Outstanding Corrosion Resistance: Acts as an impenetrable barrier against harsh chemicals and environmental degradation, eliminating the need for frequent maintenance.
Flawless Surface Finish: The meticulously controlled resin-to-fiber ratio results in a sleek, uniform texture that significantly enhances subsequent bonding and thermal layering processes.
Industrial component manufacturers, particularly those producing fluid transport systems and automotive parts, require materials that will not yield under extreme pressure. This unidirectional tape is formulated to deliver uncompromising mechanical integrity. With extraordinary tensile capabilities, it serves as a highly effective alternative to traditional metals and standard plastics, ensuring your products maintain their structural shape and performance even under severe mechanical loads.
Extreme Tensile Strength: Capable of withstanding immense pulling forces, making it ideal for high-pressure fluid containment and critical structural reinforcement.
Elevated Specific Stiffness: Provides the necessary rigidity to prevent deformation, bending, and warping, ensuring dimensional accuracy in precision-engineered parts.
Metal Replacement Capability: Offers the mechanical robustness of steel or aluminum at a fraction of the weight, revolutionizing design possibilities for heavy-duty applications.
Fatigue Resistance: Maintains structural integrity through countless cycles of stress and strain, drastically reducing the likelihood of micro-cracking over time.
Predictable Load Transfer: The parallel alignment of continuous fibers ensures that mechanical stress is distributed evenly across the entire material matrix.
When your products are deployed in unforgiving environments like underground utility networks or exposed architectural structures, material degradation is a constant threat. The high-density polyethylene matrix of this composite tape provides an exceptional shield against aggressive elements. This translates to a massive reduction in long-term maintenance costs and a significantly extended operational lifespan for the final installations.
Aggressive Chemical Immunity: Highly resistant to a wide spectrum of acids, alkalis, and industrial solvents, ensuring structural stability in contaminated soils or chemical processing facilities.
Absolute Moisture Barrier: The non-porous nature of the HDPE matrix prevents water ingress, eliminating the risk of internal swelling, delamination, or freeze-thaw damage.
Advanced Anti-Aging Performance: Formulated to resist degradation from prolonged exposure to harsh environmental conditions, maintaining its mechanical properties over decades of use.
Extended Lifecycle Value: By mitigating the effects of wear, tear, and corrosion, this material dramatically extends the service life of reinforced thermoplastic pipes and outdoor structural panels.

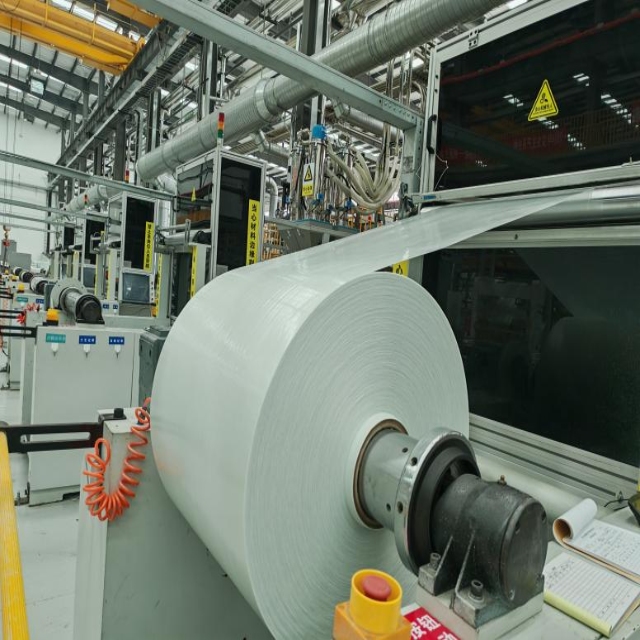

Inconsistent material quality can bring a high-volume production line to a grinding halt. We utilize a state-of-the-art melt impregnation process that guarantees absolute uniformity across every single roll. By ensuring that each individual continuous glass fiber is completely encapsulated by the thermoplastic resin, we eliminate the structural vulnerabilities associated with dry spots or exposed filaments, giving you complete confidence in your manufacturing consistency.
Perfect Fiber Encapsulation: The advanced melt process ensures deep and thorough penetration of the HDPE resin, creating a flawless, void-free composite matrix.
Zero Dry Spots: Strict quality monitoring eliminates un-wetted fibers, preventing localized weak points that could compromise the final product's integrity.
Precision Thickness Control: Manufactured to exact dimensional tolerances, ensuring a perfectly uniform thickness that facilitates smooth, uninterrupted automated processing.
Batch-to-Batch Consistency: Rigorous automated inspection protocols guarantee that the mechanical and physical properties remain identical from the first meter to the last.
Optimized Fiber Dispersion: The parallel alignment and even distribution of glass fibers maximize the reinforcing potential of the entire composite structure.
No two manufacturing facilities operate with the exact same equipment or tooling. Recognizing the diverse needs of modern industrial production, we offer an unparalleled degree of dimensional and compositional flexibility. Whether you require narrow tapes for intricate filament winding or wide sheets for large-scale panel lamination, our extensive customization capabilities ensure the material integrates flawlessly into your specific operational workflow.
Broad Width Range: Available in widths from a precise 9mm up to an expansive 630mm, accommodating a vast array of winding and placement machinery.
Adjustable Thickness Profiles: Choose from thicknesses ranging between 0.25mm and 0.50mm to perfectly match your structural requirements and thermal processing capabilities.
Customizable Fiber Ratios: Fine-tune the mechanical properties with adjustable fiber content ranging from 50% to 65%, balancing raw strength with necessary flexibility.
Tailored Areal Density: Specify areal densities between 390 gsm and 540 gsm to meet exact weight and performance criteria for your highly specialized applications.
Comprehensive Color Matching: While natural and black are standard, we provide full color customization to meet specific aesthetic or functional coding requirements.
As global industries pivot towards sustainable manufacturing practices, the materials you choose must align with stringent environmental and safety standards. This thermoplastic composite not only meets these modern ecological demands but also provides massive logistical advantages through its lightweight nature. By replacing heavy metallic components, you can significantly drive down transportation expenses and simplify on-site handling procedures.
100% Recyclable Matrix: The thermoplastic nature of the HDPE resin allows the material to be reheated, reshaped, and fully recycled at the end of its lifecycle.
Zero Harmful Emissions: Manufactured without the use of toxic solvents, ensuring a low-VOC, formaldehyde-free product that promotes a much safer working environment.
Substantial Weight Reduction: Offers the structural performance of traditional steel but at a fraction of the mass, enabling the design of highly efficient, lightweight end products.
Decreased Logistics Costs: Lighter materials translate directly to reduced shipping weights, lowering fuel consumption and transportation expenditures across your supply chain.
Streamlined Installation: The reduced weight of the final composite structures allows for easier, faster, and safer handling during field installations, minimizing labor costs.
The true value of a composite material is often proven on the factory floor during secondary manufacturing stages. This unidirectional prepreg tape is engineered for exceptional processability, allowing your production teams to shape, mold, and consolidate the material with remarkable ease. The inherent thermoplastic characteristics facilitate rapid heating and cooling cycles, drastically accelerating your overall production throughput while minimizing material waste.
Rapid Thermoforming: Quickly softens under heat for effortless shaping and molding into complex geometries, then rapidly solidifies to lock in the final precise form.
Seamless Thermal Welding: Allows for strong, cohesive bonding between layers without the need for additional adhesives, ensuring absolute structural continuity.
Superior Interlaminar Adhesion: The optimized resin chemistry promotes excellent layer-to-layer fusion during composite pressing, virtually eliminating the risk of delamination.
Enhanced Production Efficiency: The fast processing speeds associated with thermoplastic composites significantly reduce cycle times compared to traditional thermoset alternatives.
Minimized Manufacturing Scrap: The predictable behavior of the material during heating and forming reduces defect rates, ensuring maximum yield from every single roll.
Securing a reliable source for advanced composite materials is a critical strategic decision for your operations. We operate at the forefront of continuous fiber-reinforced thermoplastic technology, combining deep material science expertise with robust, high-capacity manufacturing infrastructure. Partnering with us means gaining access to a dedicated team committed to elevating your product quality and streamlining your supply chain.
Unmatched Technical Expertise: Decades of specialized experience in polymer chemistry and composite engineering ensure you receive the most advanced materials available.
State-of-the-Art Production: Our facility utilizes cutting-edge, automated extrusion and impregnation lines to guarantee absolute precision and high-volume scalability.
Rigorous Quality Assurance: Every batch undergoes exhaustive laboratory testing for tensile strength, resin content, and dimensional accuracy before leaving our facility.
Responsive Technical Support: We provide comprehensive engineering assistance, helping you optimize your processing parameters and tool designs for maximum efficiency.
Dependable Global Supply: A highly optimized logistics network ensures that your critical materials are delivered on time, protecting your production schedules from costly delays.
Navigating the technical nuances of continuous fiber-reinforced thermoplastics requires precise information. Below, we address some of the most complex inquiries from engineering and procurement professionals regarding the application, processing, and performance of our unidirectional prepreg tapes.
How does the melt impregnation process improve the final composite's performance compared to traditional methods?
By utilizing a high-temperature melt impregnation technique, the high-density polyethylene resin achieves optimal viscosity, allowing it to thoroughly penetrate and coat every individual continuous glass fiber. This eliminates microscopic voids and dry spots, resulting in superior load transfer, higher impact resistance, and a significantly more reliable structural matrix than standard pultrusion or powder coating methods.
What are the recommended heating parameters for thermoforming or consolidating this tape?
While precise temperatures depend on your specific pressing or winding equipment, the HDPE matrix typically requires a processing window between 160°C and 190°C. Within this range, the resin achieves the ideal flow characteristics for excellent interlaminar bonding and rapid consolidation, without risking thermal degradation of the polymer chain.
Can this material be effectively bonded to other polymer substrates or metal components?
Yes. Because it utilizes a thermoplastic base, the tape can be thermally welded to compatible polyethylene structures, such as RTP inner liners, creating a monolithic, seamless bond. For joining with dissimilar materials like metals, specialized adhesive promoters or mechanical fastening techniques are highly effective due to the tape's robust surface integrity.
How does the continuous glass fiber reinforcement affect the flexibility of the material during spooling and unwinding?
Despite its immense tensile strength, the unidirectional alignment of the fibers combined with the optimized thickness (0.25mm to 0.50mm) allows the tape to remain highly flexible along its longitudinal axis. This ensures smooth, tension-controlled unwinding from the spool and precise placement around tight radii during automated filament winding processes.
What measures are taken to ensure the UV stability of the black-colored variants for outdoor construction applications?
Our black unidirectional tapes are formulated with highly dispersed, premium-grade carbon black additives during the compounding phase. This acts as a powerful UV absorber, significantly enhancing the material's resistance to photo-oxidative degradation and ensuring that the structural and aesthetic properties remain intact during prolonged exposure to direct sunlight.
