As a premier manufacturer and supplier of advanced composite materials, we engineer this continuous fiber-reinforced unidirectional prepreg tape to fundamentally elevate your structural applications.
Integrates high-strength parallel glass fibers with a premium thermoplastic resin matrix.
Engineered specifically to maximize specific strength and rigidity for demanding load-bearing environments.
Manufactured via a highly precise melt impregnation process to ensure absolute consistency.
Optimized for high-volume, continuous production lines, drastically reducing overall component weight.
The GF/PP UD-TAPE is a highly engineered continuous fiber-reinforced polypropylene unidirectional prepreg tape designed to transform how modern structural components are manufactured. By utilizing a sophisticated melt impregnation process, parallel high-strength continuous glass fibers are seamlessly embedded within a thermoplastic polypropylene matrix. The resulting sheet material features a remarkably smooth, uniform surface texture that speaks to its structural integrity and void-free composition. When handled, the tape exhibits a distinct stiffness characteristic of high-density fiber alignment, yet remains sufficiently pliable for advanced thermoforming and automated tape laying processes. This material directly addresses the critical industrial demand for weight reduction without compromising load-bearing capabilities. By replacing heavier traditional metals, it significantly lowers transportation and operational costs for end-users while enhancing overall mechanical resilience. The precise distribution of fibers ensures consistent stress transfer across the material, providing exceptional impact resistance and mitigating the risk of catastrophic failure under heavy dynamic loads. Ultimately, this unidirectional tape empowers engineers to design sleeker, more durable, and highly efficient products that stand up to the most demanding operational environments.
To ensure precise integration into your manufacturing workflows, the following technical specifications outline the exact physical and dimensional attributes of our continuous fiber-reinforced prepreg tape. These parameters are strictly controlled during the production phase to guarantee batch-to-batch consistency, allowing engineers to calculate structural loads, optimize material usage, and predict end-product performance with absolute confidence. Whether you are designing lightweight automotive components or heavy-duty logistics containers, adhering to these exact specifications ensures that the final assembly will meet all rigorous industry standards and operational demands.
| Specification | Details |
|---|---|
| Fiber type | Glass fiber |
| Resin type | Polypropylene |
| Tape thickness | 0.13mm ~ 0.5mm |
| Tape surface density | 200gsm ~ 620gsm |
| Tape width | 5 mm ~ 1600 mm |

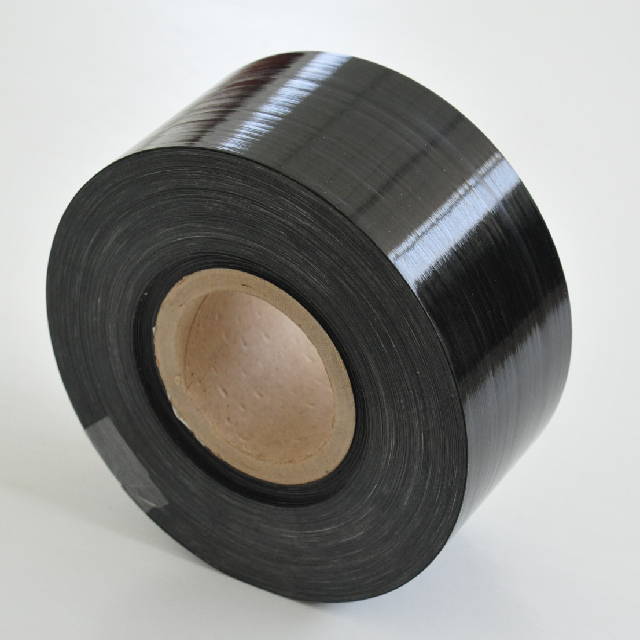

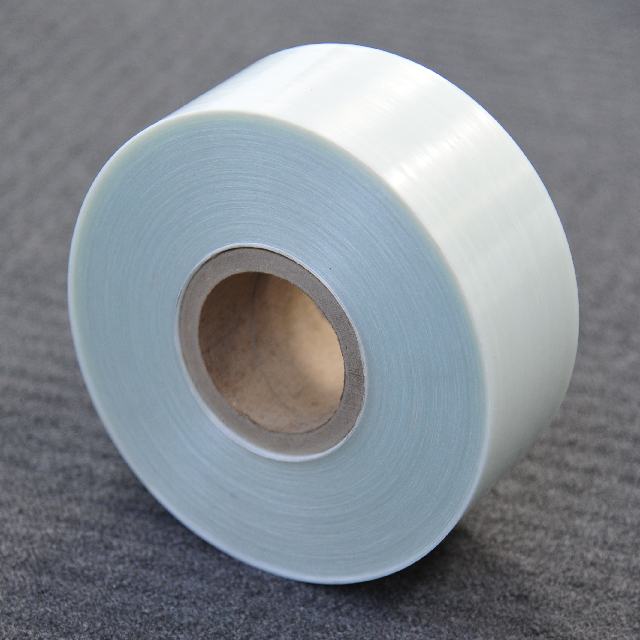

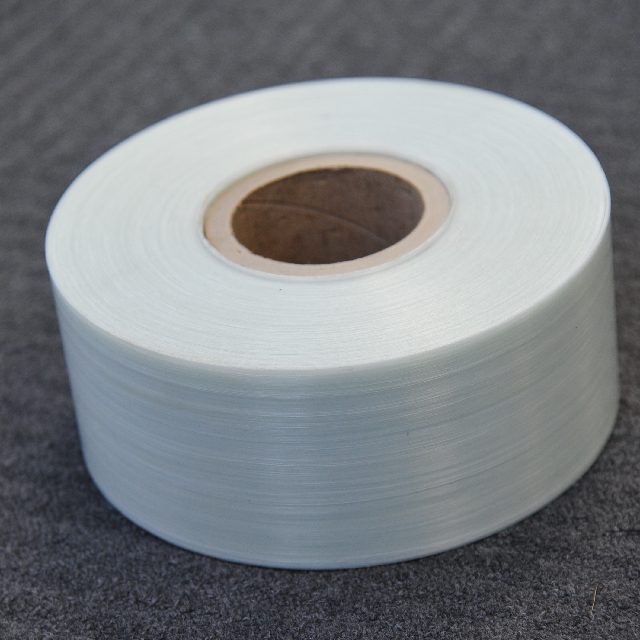

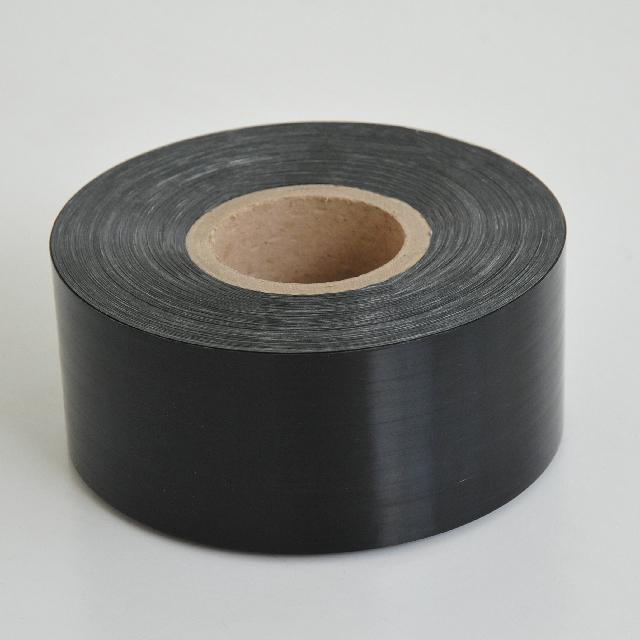

| Color | Standard colors are natural and black ; other colors can be customized |
| Fiber content | 40 % ~ 80 % |
Engineered to surpass conventional material limitations, this unidirectional tape offers a strategic advantage for high-performance structural designs. The meticulous alignment of continuous fibers ensures that mechanical stress is absorbed and distributed with maximum efficiency, translating to superior end-product reliability.
Exceptional Specific Strength: Delivers a significantly higher strength-to-weight ratio compared to traditional metallic alternatives, drastically reducing the overall mass of the final assembly.
Superior Impact Resistance: The continuous fiber architecture absorbs and dissipates kinetic energy effectively, preventing crack propagation during sudden force application.
Advanced Corrosion Defense: The robust polypropylene matrix acts as an impenetrable barrier against moisture, chemicals, and environmental degradation, ensuring long-term structural integrity.
Thermal Stability: Maintains consistent mechanical properties across varying temperature ranges, preventing warping or degradation in demanding climates.
Streamlined Consolidation: The void-free resin impregnation allows for rapid heating and cooling cycles during part fabrication, minimizing defects and improving yield rates.
Achieving the perfect balance between weight reduction and structural integrity begins at the molecular level. This tape merges continuous glass fibers with a thermoplastic polypropylene matrix, creating a foundation that redefines material efficiency and structural performance.
High Fiber Volume Fraction: With glass fiber content ranging from 40% to 80%, the material provides immense tensile strength tailored to specific load requirements.
Premium Thermoplastic Matrix: The high-grade PP resin ensures excellent toughness, chemical resistance, and seamless bonding during thermal processing.
Optimal Weight Reduction: Drastically lowers the weight of structural components, directly improving fuel efficiency and handling in transportation applications.
Synergistic Bonding: The chemical compatibility between the sized glass fibers and the PP matrix prevents delamination under severe mechanical stress.
When subjected to extreme operational stresses, the structural behavior of your components dictates their lifespan. This unidirectional tape is engineered to endure, providing mechanical properties that outpace conventional alloys and standard composite variants.
Unmatched Tensile Strength: The continuous, parallel alignment of fibers ensures maximum resistance to pulling forces along the primary load path.
High Specific Rigidity: Maintains dimensional stability and resists bending or deformation even under continuous, heavy structural loads.
Tear and Fracture Resistance: The integrated thermoplastic matrix provides inherent ductility, stopping micro-fractures before they compromise the component.
Dynamic Load Endurance: Excellently handles cyclic loading and continuous vibrations, making it ideal for moving parts and transportation infrastructure.
Modern industrial projects demand materials that not only survive harsh environments but also align with global ecological standards. This composite solution offers uncompromising durability while supporting your corporate carbon reduction targets.
Total Moisture Barrier: Inherently waterproof, preventing the swelling, rot, or degradation commonly seen in traditional materials exposed to high humidity.
Chemical Inertness: Highly resistant to acids, alkalis, and industrial solvents, ensuring longevity in aggressive chemical environments.
Fully Recyclable: As a thermoplastic composite, the material can be reheated, reshaped, and repurposed at the end of its lifecycle, eliminating landfill waste.
Non-Toxic Composition: Free from harmful volatile organic compounds (VOCs), ensuring safe handling and compliance with strict environmental regulations.
Extended Service Life: The combination of corrosion resistance and fatigue endurance drastically reduces the need for frequent maintenance and component replacement.
Consistency is the cornerstone of large-scale manufacturing. By utilizing state-of-the-art production techniques, we eliminate the variables that cause material failure, ensuring every single roll performs exactly as engineered.

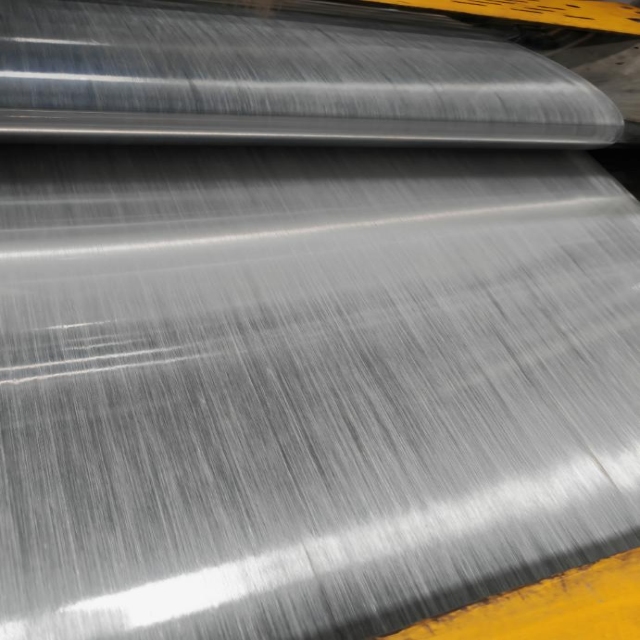

Advanced Melt Impregnation: Forces molten resin into the microscopic spaces between individual glass filaments under high pressure, eliminating dry spots and air voids.
Perfect Filament Dispersion: Ensures that every single fiber is fully encapsulated by the polymer matrix for uniform stress transfer and optimal structural integrity.
Strict Dimensional Tolerances: Continuous inline monitoring guarantees precise thickness and width, preventing alignment issues during automated layup processes.
Batch-to-Batch Uniformity: Rigorous quality assurance protocols ensure that mechanical properties remain identical across large-volume production runs.
Integrating new materials into existing production lines should not require a complete overhaul of your facility. This tape is formulated to be highly versatile, accommodating a wide spectrum of modern fabrication techniques with ease.
Automated Tape Laying (ATL) Ready: The precise edges and consistent tack-free surface make it perfectly suited for high-speed robotic placement.
Thermoforming Compatibility: Rapidly softens under heat and consolidates under pressure, drastically reducing cycle times for complex geometries.
Injection Molding Integration: Can be used as localized reinforcement to stiffen specific high-stress areas of injection-molded parts.
Flexible Pipe Winding: The continuous roll format is ideal for continuous wrapping processes used in the production of reinforced thermoplastic pipes.
Easy Handling and Storage: Requires no refrigeration, unlike thermoset prepregs, significantly lowering storage costs and simplifying inventory management.
No two engineering challenges are exactly alike. We provide an extensive matrix of dimensional and compositional options, allowing you to tailor the material precisely to your structural and aesthetic requirements.
Industry-Leading Widths: Available in continuous widths up to 2600mm, far exceeding standard market offerings to enable seamless large-panel manufacturing.
Precision Thickness Control: Ranging from an ultra-thin 0.13mm to a robust 0.5mm, allowing for precise ply-by-ply weight and strength tuning.
Variable Areal Weight: Surface densities from 200gsm to 620gsm accommodate both lightweight cosmetic layers and heavy-duty structural cores.
Color Matching: Supplied in standard natural and black, with the capability to formulate custom colors for brand-specific or aesthetic applications.
Adjustable Fiber Ratios: Fiber volume can be dialed in between 40% and 80% to strike the perfect balance between rigidity and resin-rich flexibility.
The unique combination of light weight, extreme strength, and environmental resilience makes this unidirectional tape the material of choice across a diverse range of demanding sectors.
Automotive Lightweighting: Ideal for structural inserts, underbody shields, and seat frames, significantly reducing vehicle weight to improve fuel economy and battery range.
Logistics and Transportation: Forms the rigid, impact-resistant skins of dry van trailers, refrigerated trucks, and shipping containers, increasing payload capacity.
Fluid Transportation Infrastructure: Serves as the critical pressure-bearing reinforcement layer in flexible pipes for oil, gas, and water distribution.
Architecture and Furnishings: Provides hidden structural reinforcement for modern furniture and lightweight architectural panels that require high stiffness.
Safety and Protection: Utilized in the manufacturing of impact-resistant barriers and protective enclosures that demand high energy absorption.
Selecting the right material partner is as critical as the engineering of the product itself. We are dedicated to empowering your production lines with materials that deliver measurable competitive advantages, backed by unwavering technical support and supply chain reliability.
Proven Engineering Expertise: Decades of specialized focus on continuous fiber-reinforced thermoplastics ensure deep technical knowledge and innovative material solutions.
Scalable Production Capacity: Our advanced manufacturing facilities are equipped to handle massive volume requirements without compromising lead times or quality.
Stringent Quality Assurance: Every roll undergoes comprehensive testing for tensile strength, resin distribution, and dimensional accuracy before deployment.
Collaborative R&D: We work directly with your engineering teams to develop custom layups and material formulations that solve your specific design challenges.
Global Supply Reliability: A robust logistics network ensures your materials arrive on schedule, minimizing downtime and keeping your production flowing seamlessly.
Commitment to Sustainability: By focusing on fully recyclable thermoplastic solutions, we help you meet stringent environmental compliance and green manufacturing goals.
To assist your engineering and procurement teams in evaluating this material, we have compiled answers to the most technical inquiries regarding our unidirectional prepreg tape.
How does the melt impregnation process improve the final composite?
Unlike traditional solvent or powder coating methods, melt impregnation forces the molten polypropylene deep into the glass fiber bundles under high pressure. This ensures complete wet-out of every individual filament, eliminating dry spots and microscopic voids. The result is a composite with vastly superior shear strength, better fatigue resistance, and absolute consistency across the entire roll.
Can this tape be used in automated tape laying (ATL) machines?
Yes, the material is specifically engineered for automated processing. It features highly precise slit widths, clean edges without fraying, and a consistent surface texture that prevents slippage in robotic feeding mechanisms. Additionally, its thermoplastic nature allows for rapid in-situ consolidation using laser or hot gas heating.
What is the advantage of a 2600mm maximum width?
Offering a width of up to 2600mm allows manufacturers to produce large-scale components—such as truck side panels or shipping container walls—without the need for multiple overlapping seams. This not only significantly reduces layup time and labor costs but also eliminates the structural weak points inherently associated with spliced joints.
How does the material perform in extreme temperature environments?
The polypropylene matrix provides excellent thermal stability within its operational range. While it remains highly impact-resistant in sub-zero conditions without becoming brittle, it also maintains its structural rigidity in elevated ambient temperatures. For specific thermal requirements, the fiber volume fraction can be adjusted to minimize the coefficient of thermal expansion.
Is the material completely recyclable after its service life?
Absolutely. Because it utilizes a thermoplastic polypropylene matrix rather than a thermosetting epoxy, the entire composite can be shredded, melted, and repurposed into short-fiber reinforced injection molding pellets. This closed-loop lifecycle is highly advantageous for companies looking to reduce their carbon footprint and comply with zero-waste initiatives.
