| Quantity: | |
|---|---|
As a premier manufacturer and supplier of advanced composite materials, we engineer premium Steel Wire PE UD TAPE designed for demanding industrial applications. This continuous steel wire reinforced polyethylene unidirectional prepreg tape integrates high-strength steel wires with high-density polyethylene resin to deliver uncompromising performance.
Engineered specifically for reinforced composite pipes.
Advanced melt impregnated process ensures zero dry spots.
Customizable widths to seamlessly fit diverse production lines.
Exceptional structural integrity built for high-pressure environments.

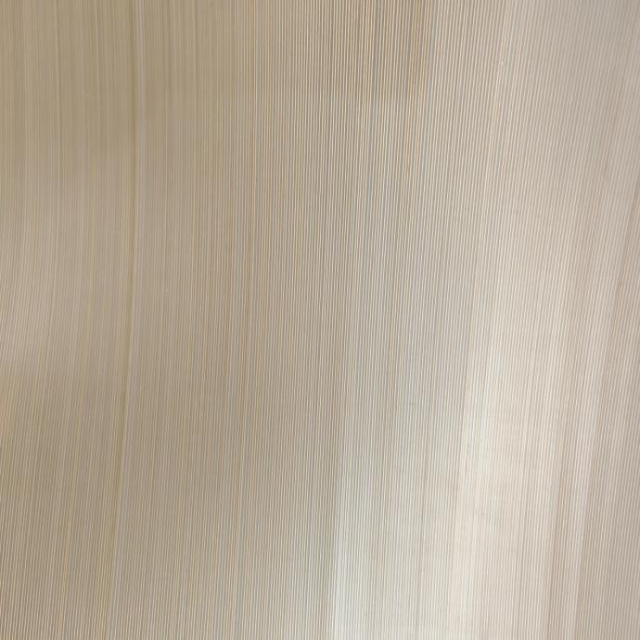

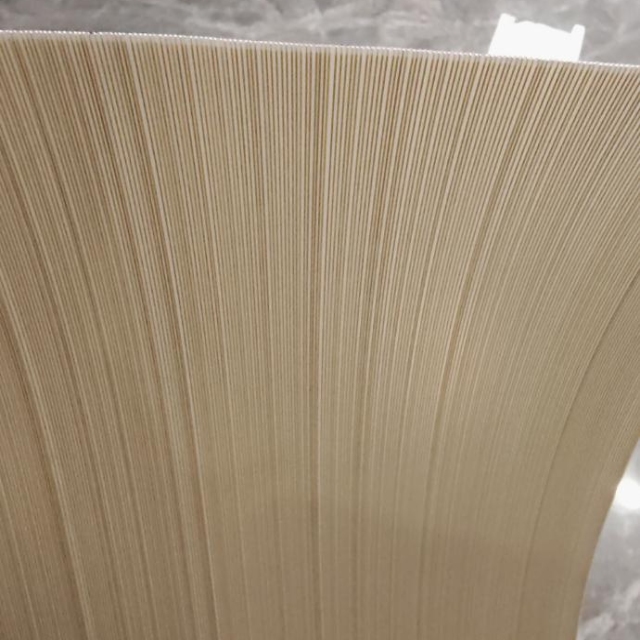

The Steel Wire PE UD TAPE is a highly engineered sheet material crafted through a meticulous melt impregnation process. By embedding parallel, high-strength steel wires directly into a robust high-density polyethylene (HDPE) resin matrix, this unidirectional prepreg tape achieves an extraordinary level of structural cohesion. The sleek, uniform surface of the tape speaks to its flawless manufacturing, completely devoid of voids, air pockets, or resin-starved areas. When you run your hand across the surface, the dense, smooth finish reflects the superior bonding between the metallic reinforcement and the thermoplastic matrix, assuring you of its premium build quality.
This advanced composite solution is specifically formulated to tackle the rigorous demands of fluid transportation and structural reinforcement. The precise alignment of the continuous steel wires ensures maximum load-bearing capacity along the primary axis, mitigating the risks of catastrophic failure under extreme internal pressures. By integrating this composite tape, infrastructure projects can drastically improve the burst strength and fatigue life of their piping networks. It seamlessly bridges the gap between the raw tensile power of steel and the chemical resilience of thermoplastics, offering a transformative material that redefines the operational limits of reinforced composite pipes and heavy-duty industrial conduits.
Specifications and dimensions:
Fiber type: Steel wire
Resin type: High-density polyethylene
Tape thickness: 0.3mm
When integrating the Steel Wire PE UD TAPE into your production lines, the immediate advantage lies in its transformative impact on end-product durability and operational efficiency. This material is engineered to eliminate the common pain points associated with traditional piping reinforcements, offering a streamlined, high-performance alternative that enhances your competitive edge and accelerates your manufacturing cycles.
Exceptional Burst Resistance: The unidirectional alignment of high-strength steel wires absorbs and distributes internal pressure flawlessly, preventing catastrophic pipe failures in high-stress environments.
Seamless Matrix Bonding: The melt impregnation technique ensures the high-density polyethylene resin fully encapsulates every single wire, eliminating delamination risks and ensuring long-term structural stability.
Optimized Spooling Dynamics: Designed with a precise 0.3mm thickness, the tape conforms smoothly during the winding process, reducing machine wear and increasing the speed of your manufacturing cycles.
Impermeable Barrier Properties: The dense HDPE matrix acts as a formidable shield against moisture and aggressive chemicals, safeguarding the internal steel reinforcement from degradation.
Thermal Consistency: Engineered to maintain its mechanical properties across a broad temperature spectrum, ensuring reliable performance whether deployed in freezing sub-zero climates or scorching industrial settings.
Crafted through a sophisticated melt impregnating process, this tape unites high-strength parallel steel wires with a premium high-density polyethylene (HDPE) resin matrix. This meticulous manufacturing approach yields a composite material of unparalleled density and consistency.
Guarantees complete encapsulation of the steel wires, eliminating dry spots and structural weak points that cause premature fatigue.
Forms a highly dense unidirectional (UD) prepreg tape that delivers outstanding interlaminar adhesion across multiple wrapped layers.
Ensures consistent material behavior during secondary processing, heating, and final application.
Engineered specifically for RTP/TCP and flexible composite pipes, this tape provides unparalleled structural reinforcement. It acts as the robust backbone for fluid transportation systems operating under extreme dynamic loads.
Delivers exceptional axial tensile strength to withstand extreme internal burst pressures safely.
Effectively prevents the dreaded "birdcaging" effect and lateral buckling in deep-sea or high-stress environments.
Safeguards the ultimate structural integrity of your pipeline infrastructure, ensuring continuous operation without rupture.
The robust HDPE matrix serves as an impenetrable fortress against harsh environmental factors, significantly reducing the need for frequent maintenance and costly replacements.
Boasts superior chemical resistance, effectively blocking seawater, sour gas, and corrosive industrial fluids from reaching the metal core.
Features excellent UV stability and thermal endurance, operating flawlessly between the extreme temperatures of -40°C and 80°C.
Significantly extends the operational lifespan of oil and gas transportation networks and critical subsea cables.
Designed with manufacturing efficiency in mind, the tape offers highly adaptable dimensions tailored to fit seamlessly into diverse production setups and machinery configurations.
Maintains a standard, ultra-thin profile of 0.3mm, making it exceptionally suited for rapid multi-layer spiral winding.
Widths are fully customizable (ranging from 10mm to 1200mm) to match your specific tensioning and winding equipment perfectly.
Facilitates rapid heating and pressure molding, drastically improving installation speeds and on-site pipeline repair efficiency.
This advanced composite material redefines the balance between weight and strength, offering a modern alternative to outdated, heavy reinforcement methods.
Replaces bulky traditional pure steel armoring or heavy concrete weight coatings without sacrificing an ounce of structural strength.
Achieves significant lightweighting of the final pipe structure, easing handling, logistics, and heavy lifting requirements.
Dramatically reduces transportation, laying, and long-term maintenance expenses, boosting the overall profitability of large-scale projects.
Every roll of UD tape is a testament to uncompromising quality and precision engineering, ensuring peace of mind for engineers and project managers alike.
Produced under strict ISO quality management systems using state-of-the-art extrusion coating technology.
Ensures perfectly uniform fiber distribution across the entire length and width of the tape, eliminating weak links.
Undergoes rigorous factory testing to meet and exceed the stringent safety standards of the international oil, gas, and fluid transport sectors.
Selecting the right manufacturer for your composite materials is a critical decision that impacts the safety and success of your entire operation. Qingdao CIMC Composites Co.,Ltd. (QCCC) stands at the forefront of continuous fiber-reinforced thermoplastic composites, bringing unmatched technological research and production capabilities to the table. We do not just supply materials; we engineer solutions that drive your projects forward with confidence and reliability.
Unrivaled R&D Capabilities: Our dedicated research teams continuously push the boundaries of thermoplastic composite technology, ensuring you receive the most advanced materials available on the market.
Scalable Production Excellence: Equipped with cutting-edge manufacturing lines, we have the capacity to fulfill massive volume requirements while maintaining pinpoint precision and consistency across every batch.
Stringent Quality Assurance: From raw material sourcing to the final spooling, every step is monitored under rigorous quality control protocols to guarantee zero-defect delivery.
Global Supply Chain Reliability: We understand the critical nature of project timelines. Our robust logistics network ensures your materials arrive precisely when and where you need them, without delay.
Dedicated Technical Support: Our engineering experts collaborate closely with your team, providing guidance on winding techniques, temperature controls, and system integration to maximize material performance.
How does the melt impregnating process enhance the performance of the UD tape?
The melt impregnating process is crucial for achieving the superior mechanical properties required for heavy-duty applications. Unlike traditional coating methods, this advanced technique ensures deep penetration and bonding.
It allows the molten HDPE resin to penetrate deeply between the high-strength parallel steel wires.
This creates a dense, void-free composite matrix that entirely prevents moisture ingress and internal corrosion.
It significantly improves the load transfer efficiency between the resin matrix and the steel reinforcement, preventing delamination under stress.
Can the width of the tape be adjusted to fit our specific winding machinery?
Absolutely. We recognize that different production facilities utilize varying equipment setups, and material adaptability is key to maintaining operational efficiency.
The tape width is fully customizable, with standard references ranging broadly from 10mm to 1200mm.
Custom slitting ensures the spools integrate seamlessly with your existing tensioning, heating, and winding systems.
This high level of adaptability minimizes equipment modification costs and accelerates your production readiness.
What makes this tape suitable for high-pressure RTP and TCP applications?
Reinforced Thermoplastic Pipes (RTP) and Thermoplastic Composite Pipes (TCP) operate under extreme stress and require materials that will not yield under pressure.
The continuous parallel steel wires provide immense axial and hoop strength, far exceeding standard polymer reinforcements.
The 0.3mm ultra-thin profile allows for dense, multi-layered wrapping without adding excessive bulk or rigidity to the pipe.
This precise construction effectively neutralizes internal burst pressures and external crushing forces, maintaining pipe integrity.
How does the material perform in extreme temperature environments?
Environmental resilience is a hallmark of our engineered UD tape, ensuring that geographical and climatic challenges do not hinder your operations.
The high-density polyethylene matrix remains stable, tough, and impact-resistant in temperatures as low as -40°C.
It resists thermal degradation and maintains structural integrity in operating environments reaching up to 80°C.
This broad thermal operating window makes it ideal for both arctic subsea installations and high-temperature industrial fluid transport.
