As a leading manufacturer and supplier of advanced composite materials, we engineer premium weaving laminates designed for rigorous industrial applications. Sourced directly from the factory, this solid sheet delivers uncompromising structural integrity to meet the most demanding project requirements.
Engineered from continuous fiber-reinforced thermoplastic unidirectional tape.
Precision-woven and hot-pressed for maximum durability and impact resistance.
Ideal for large-volume procurement in automotive, construction, and energy sectors.
Direct-from-manufacturer production ensuring exceptional value and consistent availability.

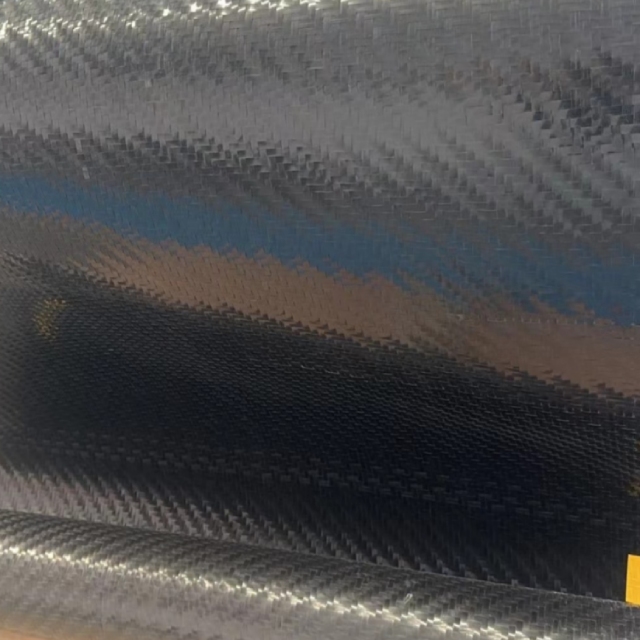

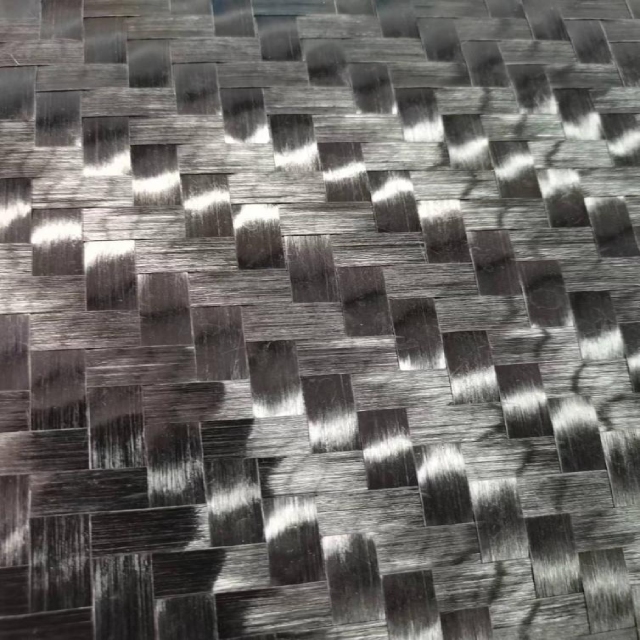

The Weaving Laminate represents a pinnacle in modern composite engineering, meticulously crafted to bridge the gap between lightweight design and heavy-duty performance. The manufacturing journey begins with premium continuous fiber-reinforced thermoplastic unidirectional tape, which is precisely slit into uniform narrow strips.
These strips are then fed into state-of-the-art weaving machinery, interlacing them into a robust, continuous woven matrix. This intricate textile foundation undergoes an advanced lamination and high-pressure thermal consolidation process, transforming the flexible woven material into a rigid, formidable solid sheet. The resulting laminate exhibits a striking visual texture—a testament to its woven core—while delivering a smooth, tactile surface that resists delamination under extreme stress. Engineered to solve the complex weight-to-strength dilemmas faced by modern industries, this solid sheet offers a remarkable structural backbone for demanding environments. Whether integrated into the chassis of a commercial vehicle, lining the walls of a refrigerated transport unit, or forming the resilient core of a flexible pipeline, the material provides an unparalleled combination of impact resistance, dimensional stability, and long-term reliability.
Elevate your manufacturing capabilities with a composite material engineered for uncompromising excellence. Our weaving laminate is designed to resolve critical structural challenges, offering a sophisticated blend of resilience and adaptability for large-scale assembly lines.
Exceptional Load-Bearing Capacity: The interlaced continuous fibers distribute stress evenly across the solid sheet, preventing localized fractures and ensuring long-term structural integrity in high-vibration environments.
Thermal Consolidation Mastery: Through rigorous hot-pressing, the thermoplastic matrix achieves complete impregnation, eliminating microscopic voids and resulting in a dense, moisture-impermeable core.
Lightweight Dominance: Drastically reduces the overall weight of end-products without sacrificing tensile strength, directly translating to improved fuel efficiency in commercial transportation.
Seamless Integration: The uniform thickness and clean, fray-resistant edges allow for precise CNC machining, routing, and drilling, minimizing material waste during mass production.
Material & Composition
The foundation of our weaving laminate lies in its superior material architecture. By utilizing continuous fiber-reinforced thermoplastic unidirectional tape, we provide a material solution that prioritizes both environmental compliance and mechanical dependability.
Continuous Fiber Reinforcement: Unlike short-fiber composites, the continuous strands run uninterrupted through the matrix, offering exponential increases in tensile and flexural strength.
Thermoplastic Matrix: Ensures high-impact toughness and allows the material to be reshaped or recycled, aligning with modern sustainability and eco-friendly manufacturing goals.
Chemical Synergy: The seamless bond between the fiber and the thermoplastic resin creates a formidable barrier against environmental degradation, ensuring the laminate remains stable under fluctuating thermal conditions.
Odorless and Safe: Manufactured without harmful volatile organic compounds (VOCs), making it exceptionally safe for enclosed environments like touring cars and interior architecture.
Manufacturing Process & Structural Strength
Our factory leverages a cutting-edge, multi-stage fabrication protocol to transform raw thermoplastic tapes into an impenetrable solid sheet. This hard-core manufacturing capability ensures every panel meets the highest thresholds of structural stability.
Precision Slitting: The unidirectional tape is cut into exact narrow strips with micro-millimeter accuracy, ensuring uniform tension during the subsequent weaving phase.
Continuous Interlocking Weave: Advanced automated looms weave the strips into a tight, multi-axial fabric, creating a mechanical interlock that naturally resists tearing and catastrophic shear failure.
High-Pressure Lamination: The woven layers are stacked and subjected to intense, controlled thermal pressing, melting the thermoplastic matrix just enough to fuse the layers into a singular, monolithic sheet.
Dimensional Lock-In: The cooling phase is strictly regulated to prevent warping or internal stress accumulation, guaranteeing that the final laminate remains perfectly flat over its lifespan.
Core Physical & Chemical Performance
Designed to thrive in the most unforgiving environments, this laminate acts as a reliable shield against physical wear and chemical degradation. It addresses the exact pain points encountered in heavy-duty transit and outdoor infrastructure.
Absolute Moisture Resistance: The non-porous hot-pressed surface completely blocks water ingress, eliminating the risk of rot, swelling, or delamination in reefer transportation and marine applications.
Corrosion and Chemical Immunity: Highly resistant to industrial solvents, cleaning agents, and road salts, significantly extending the maintenance lifecycle of your fleet or equipment.
Superior Impact Deflection: The woven fiber architecture absorbs and dissipates kinetic energy upon impact, preventing dents and punctures in dry van walls and shipping containers.
Thermal and Weather Endurance: Engineered to withstand extreme temperature fluctuations and prolonged UV exposure without turning brittle or losing its structural rigidity.
We recognize that every engineering project demands specific technical parameters. Our production lines are highly adaptable, offering extensive customization to align perfectly with your precise operational requirements.
Tailored Thickness and Dimensions: Available in a wide spectrum of thicknesses and custom-cut panel sizes to seamlessly integrate into your existing assembly lines without secondary trimming.
Variable Areal Weights: The density and weight of the continuous fiber tape can be adjusted to meet exact strength-to-weight ratio requirements for specialized automotive or aerospace parts.
Performance Additives: Capable of incorporating functional surface treatments, including anti-static coatings, enhanced UV inhibitors, and flame-retardant properties to meet strict regional safety codes.
OEM and ODM Flexibility: From conceptual prototyping to full-scale mass production, our engineering team collaborates closely to develop bespoke laminate solutions tailored to unique blueprints.
Surface Finish & Aesthetics
Beyond its formidable internal strength, the weaving laminate offers a visually striking and tactilely refined exterior. It merges industrial-grade durability with commercial-grade elegance, making it highly desirable for visible applications.

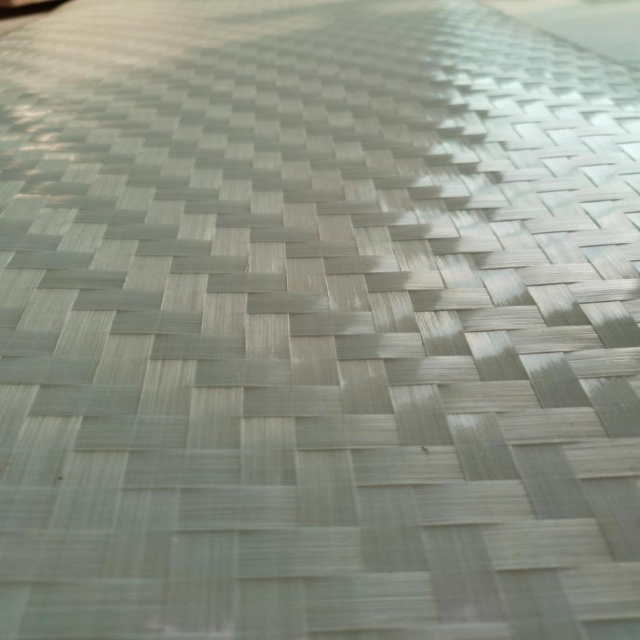

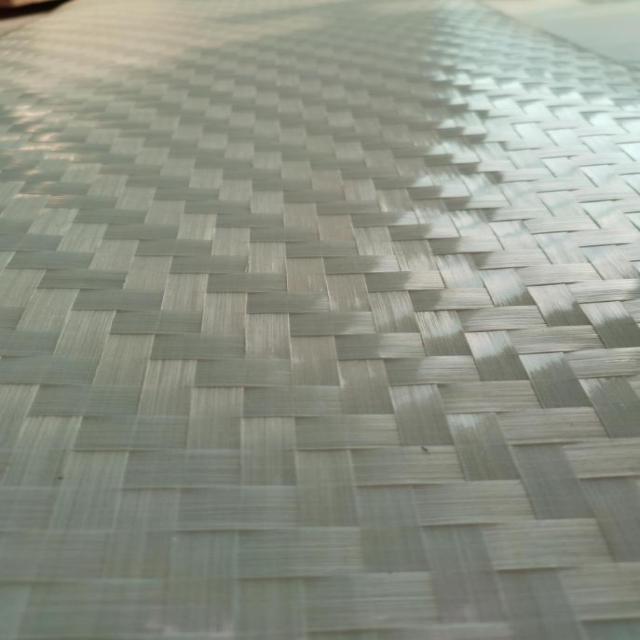

Distinctive Woven Texture: The surface subtly displays the geometric interlacing of the continuous fibers, providing a modern, high-tech aesthetic that elevates the perceived value of architectural panels.
Customizable Gloss Levels: Available in both sophisticated matte finishes that diffuse light and high-gloss finishes that offer a sleek, reflective appearance for touring car interiors.
Scratch and Abrasion Resistance: The hardened thermoplastic exterior resists daily wear and tear, maintaining its pristine look even in high-traffic environments or frequently handled equipment.
Effortless Maintenance: The smooth, non-porous nature of the hot-pressed sheet repels dirt, grease, and fingerprints, allowing for rapid cleaning with standard commercial detergents.
The unparalleled versatility of this continuous fiber-reinforced solid sheet makes it a cornerstone material across a vast spectrum of demanding industries. It seamlessly replaces traditional metals and heavy woods, upgrading overall system performance.
Commercial Transit: Serves as the ultimate lightweight, high-strength paneling for dry vans, reefer transportation, and shipping containers, maximizing cargo capacity while reducing fuel consumption.
Automotive Excellence: Utilized in passenger cars and touring vehicles for structural reinforcements, underbody shields, and interior paneling due to its superior crashworthiness and acoustic dampening.
Infrastructure and Architecture: Acts as a resilient architectural facade, concrete formwork, or structural reinforcement in clean energy installations, offering decades of maintenance-free service.
Industrial Fluid Transport: Forms the indispensable rigid skeleton for the flexible pipe, providing the necessary hoop strength to withstand extreme internal pressures in chemical or subsea pipelines.
Securing a reliable material source is paramount for continuous manufacturing operations. Qingdao CIMC Composites Co.,Ltd. (QCCC) guarantees uncompromised quality assurance and a resilient supply chain to keep your production moving flawlessly.
Stringent Quality Audits: Every batch of weaving laminate undergoes rigorous ultrasonic testing and mechanical stress evaluations to ensure zero internal voids and exact dimensional tolerances.
Global Certification Compliance: Manufactured under strict international quality management systems, ensuring the material meets the rigorous safety and performance standards required for global distribution.
Rapid and Scalable Output: Equipped with high-capacity automated weaving and pressing lines, we ensure fast delivery cycles, effortlessly accommodating sudden surges in volume requirements.
Comprehensive Technical Support: Our dedicated material engineers provide end-to-end guidance, from initial material selection and sample testing to post-delivery integration troubleshooting.
Partnering with us means securing a strategic advantage in material procurement. We do not just supply solid sheets; we deliver engineered confidence tailored to elevate your market competitiveness and operational efficiency.
Pioneering Expertise: Years of focused research and development in continuous fiber-reinforced thermoplastics position us at the forefront of composite material innovation.
Direct Manufacturer Advantage: By eliminating intermediaries, we provide highly competitive pricing structures without compromising on the premium quality and consistency of our laminates.
Unwavering Consistency: Our fully automated production environment guarantees that the thousandth panel you receive is identical in mechanical performance and visual appearance to the first.
Sustainable Vision: We are deeply committed to environmentally responsible manufacturing, utilizing recyclable thermoplastic matrices and energy-efficient hot-pressing technologies.
To assist your engineering and procurement teams in making informed decisions, we have compiled detailed answers to the most critical technical inquiries regarding our weaving laminate.
Q1: How does the continuous fiber weaving process enhance the laminate's tear resistance compared to standard composites?
The interlocking nature of the woven narrow strips creates a multi-directional load path. When subjected to stress, the continuous fibers distribute the force across the entire solid sheet, preventing localized micro-cracks from propagating and significantly boosting overall tear resistance and structural longevity.
Q2: Can this solid sheet be thermoformed or reshaped after the initial hot-pressing?
Yes. Because it utilizes a thermoplastic matrix rather than a thermoset resin, the laminate can be reheated to its specific softening point and thermoformed into complex three-dimensional shapes. This offers immense flexibility for secondary manufacturing processes without degrading the fiber integrity.
Q3: What are the primary advantages of using this material in reefer transportation?
The weaving laminate offers exceptional thermal stability and absolute moisture resistance. It will not absorb condensation or degrade in freezing temperatures. Furthermore, its lightweight profile increases the payload capacity of the refrigerated truck, while its high impact resistance protects against forklift damage during loading and unloading.
Q4: How do you ensure the dimensional stability of the laminate during large-scale production?
We maintain strict automated control over the thermal consolidation process. By meticulously managing the heating and cooling gradients during hot-pressing, we eliminate internal residual stresses. This ensures that every sheet remains perfectly flat and dimensionally accurate, even when produced in large architectural formats.
Q5: Are there specific cutting and machining tools required to process this woven laminate?
While the material is exceptionally tough, it can be processed using standard CNC routing and cutting equipment. To ensure clean, fray-free edges and to maximize tool longevity, we recommend using diamond-coated or solid carbide tooling with optimized feed rates tailored to thermoplastic composites.
